Concrete Floor Thickness Guide for Car Hoist Installation

Key Factors to Consider When Installing a Car Hoist in Your Garage

If you are contemplating the installation of a car hoist in your garage, it is absolutely vital to ensure that your concrete floor adheres to the necessary specifications. A strong and stable foundation is not only essential for the effective operation of the hoist, but it also plays a critical role in protecting your vehicles and ensuring the safety of everyone who operates the equipment. Thorough preparation and strict compliance with installation guidelines can significantly enhance both the performance and lifespan of your hoist, making your investment truly worthwhile.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist. This distribution is imperative for reducing the potential risk of cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially extending up to 150mm (6 inches), to ensure optimal performance, reliability, and safety during operation.

Comprehensive Guide to Determining the Necessary Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a pivotal factor in ensuring not only the safe installation but also the reliable operation of your car hoist. Several critical factors must be evaluated when assessing the appropriate depth for your slab to ensure it can adequately handle the loads it will be subjected to during use. Understanding these factors will help you avoid costly mistakes and greatly enhance the safety of your garage setup.

Assessing Load Capacity for Your Car Hoist Installation

Car hoists impose significant stress on the concrete floor beneath them. Therefore, it is essential to ascertain the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can substantially add to the load on the floor.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is prudent to account for extra weight as a safety buffer, ensuring that the structure can withstand unforeseen circumstances and load variations.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability throughout operation.

Consulting with a structural engineer is a wise decision, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness required based on your specific circumstances and requirements.

Understanding Different Types of Car Hoists and Their Concrete Thickness Specifications

It is crucial to recognise that various types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the hoist operates safely and efficiently without compromising the integrity of the floor.

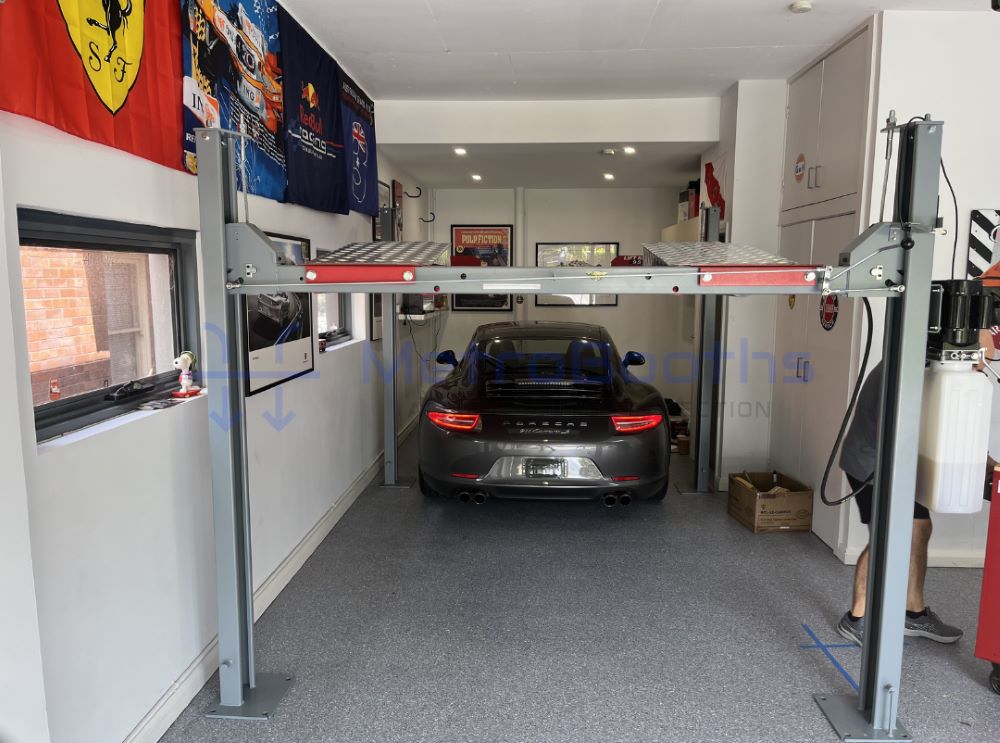

In contrast, four-post lifts distribute weight more evenly across a larger area, enabling them to function efficiently with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This knowledge significantly impacts your planning and installation process.

Always refer to the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for optimal performance and longevity of your equipment.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you intend to lift.

Recognising the Significance of Concrete Strength and Reinforcement Methods

The strength of your concrete is as critical as its thickness. Stronger concrete can often be successfully employed at a thinner depth while still providing adequate support for heavy loads, particularly important in the context of a car hoist installation.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. This ensures that your installation can withstand the demands placed upon it.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor, potentially allowing for the use of a thinner slab while still ensuring it effectively supports heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can assist in mitigating the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Critical Installation Factors for Ensuring the Successful Operation of Your Car Hoist

When it comes to installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is crucial to verify that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is vital to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, which is essential for safe operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional who can accurately assess its condition is highly advisable to prevent potential issues in the future.

Essential Ongoing Maintenance for Your Car Hoist After Installation

Once your car hoist is installed, it is vital to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could affect the hoist's functionality and safety.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly checking the tightness of the anchor bolts is also crucial, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe usage, making it a vital part of your upkeep routine.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a wise investment for any garage owner.

Frequently Asked Questions About Car Hoist Installation and Concrete Specifications

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation, ensuring your setup is reliable.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety, stability, and reliable performance during use.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safe lifting capabilities.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a prudent choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, providing you with confidence in your investment.
