Victorian Tile Restoration Found Beneath Carpet Layers

Reveal the Concealed Challenges Beneath Your Carpet: Elevate Your Victorian Tile Restoration in Penkhull

Comprehensive Evaluation of Initial Floor Conditions

If your Victorian tile floor has been hidden beneath carpet for an extended period, the primary issue often lies not with visible dirt but with the concealed condition underneath. In Penkhull, the homeowner encountered a shadowy and uneven hallway floor, starkly contrasting with the decorative entrance feature meant to welcome visitors.

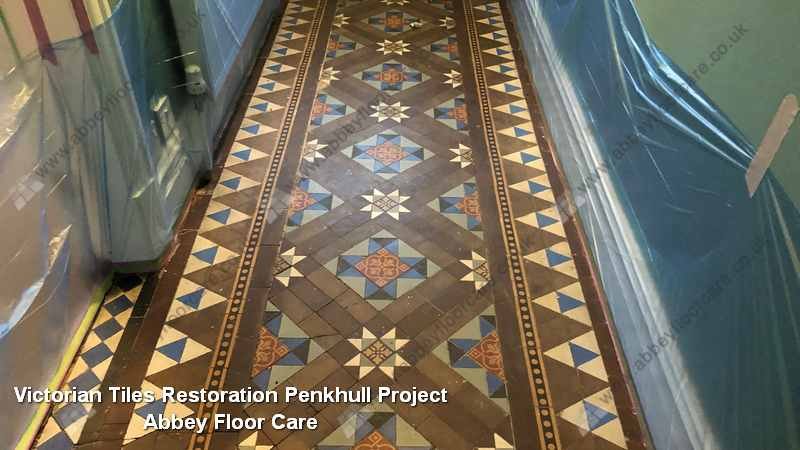

Once the carpet was lifted, the original geometric and encaustic tiled hallway exhibited flat colours, dull patches, and sections where the surface appeared weary rather than simply dusty. The intricate patterns survived, yet the floor had absorbed residues from old coverings, household cleaning agents, and years of moisture trapped beneath an impervious layer.

Penkhull, located in the City of Stoke-on-Trent within the ST4 postcode area, is renowned for its high concentration of late Victorian and Edwardian terraced houses, alongside larger villas and inter-war suburban developments around Trent Valley Road and Prince’s Road. Original <a href="https://fabritec.org/victorian-tiles-restoration-for-worn-minton-floors/">Victorian tile floors</a> are primarily found in entrance halls, vestibules, porches, and main reception areas, where geometric and encaustic designs were employed to create a strong decorative first impression. Much of the housing stock dates back to the rapid expansion of the Potteries during the mid to late 19th century, with solid-wall terraces and period properties still contributing significantly to the area's character today. Penkhull retains a rich heritage identity, evident in its historical street layouts, workers’ housing, and surviving architectural elements linked to Stoke-on-Trent’s industrial growth.

During the 19th century, Penkhull experienced rapid development as the pottery industry, railway connectivity, and associated engineering trades stimulated significant population growth across Stoke-on-Trent. Families linked to manufacturers such as Spode and Minton played a pivotal role in shaping the area's housing, which explains why many local hallways and entrance passages continue to feature original Victorian geometric and encaustic tiled floors today.

Recognising the Visible Issues Impacting Your Floor

The darkened grout lines throughout the Penkhull hallway revealed where old coatings, trapped dirt, and cleaning residues had accumulated in the gaps between tiles over many years. The floor exhibited multiple simultaneous issues, including muted colours, dull patches, edge staining, and isolated areas where tiles had begun to shift slightly underfoot.

The clay tile surface responded inconsistently, with certain areas retaining more contaminants than others while the floor remained concealed beneath carpet. This variation is critical when assessing a period floor; it was never intended to be viewed as a perfectly flat modern surface but rather as an original hallway burdened by past coverings, potential adhesive residues, historic moisture exposure, and natural colour variations throughout the installation.

The Penkhull project mirrored the Minton tile floor restoration in Ovington, where challenges related to old coatings, carpet-induced contamination, loose tiles, and colour recovery defined the scope of work. Both projects featured original patterned floors requiring meticulous restoration rather than a generic cleaning approach. The Penkhull hallway presented its unique pattern layout, history of movement, residue accumulation, and moisture behaviour.

Once the primary covering was removed, the original patterns became clearly visible. The vibrant colours had merely been concealed beneath years of contamination that dulled the surface and muted the contrast between the geometric sections. There was no need to artificially create anything; the essence of the floor was already embedded within the original layout, borders, and surviving Minton-style detailing.

Understanding Homeowner Concerns and Documenting Project Evidence

The homeowner expressed a desire for the entrance hall to regain a clean and welcoming atmosphere without compromising the historical significance that rendered the floor worthy of preservation. Despite years of neglect, the surviving pattern lines, original surface, and remaining colours all indicated that the floor warranted careful restoration from the initial inspection to the final outcomes.

Movement within the hallway was noticeable long before it became visually apparent. This aspect is often significant with older tiled floors, as loose sections, lifting edges, and unstable bedding can lead to a surface that appears worse after repeated mopping, particularly where moisture permeates through porous sub-floors and no effective damp-proof barrier exists beneath the installation.

Carpets and other floor coverings frequently leave behind adhesive residues, gripper damage, staining, and dark shadow marks on older tiled surfaces. The Penkhull hallway exhibited the same type of concealed-floor evidence discussed in the Trinity Edinburgh Victorian tile restoration case study, where impervious coverings and traditional hallway construction influenced what could be safely achieved. Importantly, the visible surface rarely conveys the complete story until the floor is unveiled and thoroughly assessed.

Victorian encaustic and geometric tiles are clay-fired at high temperatures, making the fired surface chemically stable yet physically vulnerable to abrasion and unsuitable for acidic cleaning methods. This consideration was crucial here, as worn fire skin, vulnerable edges, trapped residues, and historical colour variations had to be acknowledged as existing floor conditions rather than merely treated as superficial dirt.

The original tile face maintained a fired matte surface, which did not require polishing away. A properly restored Victorian tile floor should retain that matte character, while any appropriate topical protection adds only a subtle sheen without altering the period appearance of the floor itself.

Discover the Causes of Loose Victorian Hallway Tiles and Dark Grout Lines

Dark grout lines and slight movement often indicate underlying issues hidden beneath the visible surface. In the Penkhull hallway, dirty liquids infiltrated grout joints, weakened bedding areas, gaps, and deteriorated sections, resulting in repeated mopping that only provided a temporary appearance of cleanliness before the same dark lines resurfaced.

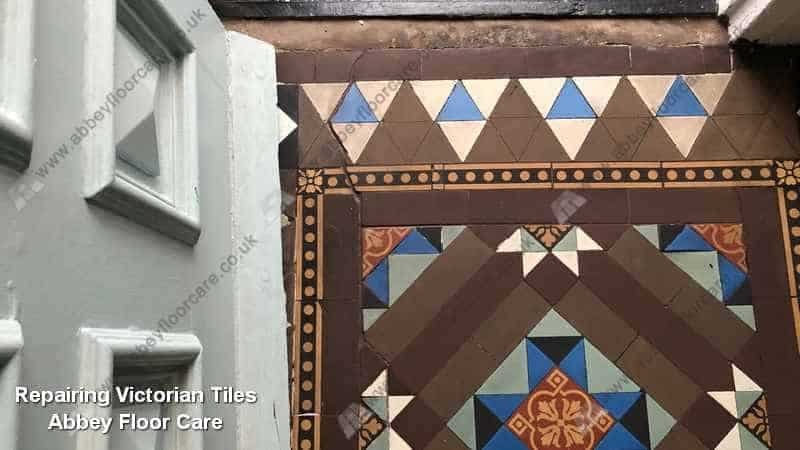

Loose tiles further confirmed that sections of the old floor system had become unstable, rather than merely dirty on the surface. Water could infiltrate vulnerable joints, increasing dampness within the permeable sub-floor below, leading to isolated tiles becoming loose, lifting, or sounding hollow where the structure was no longer adequately dry or secure for sealing.

Dark grout lines and loose tiles typically stem from the floor system, rather than dirt alone.

The same relationship between movement, trapped residues, and traditional floor behaviour is evident in the Walsall Minton floor restoration. This comparison illustrates why the Penkhull hallway required treatment as a comprehensive restoration project rather than a quick surface clean. The visible symptom was dark grout lines, while the underlying issue lay in contamination trapped within a moving floor structure.

Applying Gentle Restoration Techniques for Victorian Tiles Using Controlled Cleaning Methods

Aggressive stripping techniques can leave an old Victorian tile floor excessively wet for prolonged periods, making it slower to stabilise and much harder to dry safely before sealing. In Penkhull, therefore, the hallway underwent cleaning through a series of controlled passes, rather than a single heavy application of water and harsh chemicals.

Gentle repeated cleaning enabled softened residues, waxes, old coatings, and contaminated solutions to gradually be released from the tile pores. Wet vacuum extraction subsequently removed slurry, rinse water, loosened soiling, and dirty fluids after each pass, helping to reduce the risk of over-wetting, salt mobilisation, or further disturbance within weakened bedding areas.

Heavy wet stripping would have heightened the likelihood of excess moisture penetrating the floor, thereby delaying the drying process prior to sealing. Similar principles of colour recovery are explored in restoring colour and pigment to faded Victorian mosaic tiles. In this Penkhull project, improvements stemmed from controlled extraction, gradual residue removal, and patience, rather than force.

Transforming Restored Victorian Hallway Tiles in Penkhull into a Striking Feature While Preserving Their Authentic Character

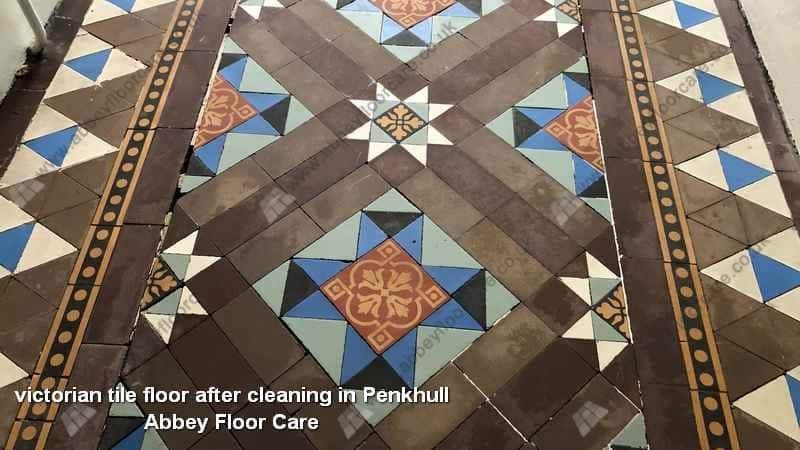

If your restored Victorian hallway appears cleaner yet still exhibits signs of age, that is often the intended outcome for an original period floor. The Penkhull hallway appeared significantly enhanced after restoration, showcasing richer colours, clearer pattern definitions, and a more even matte finish that still respected the natural signs of age and use.

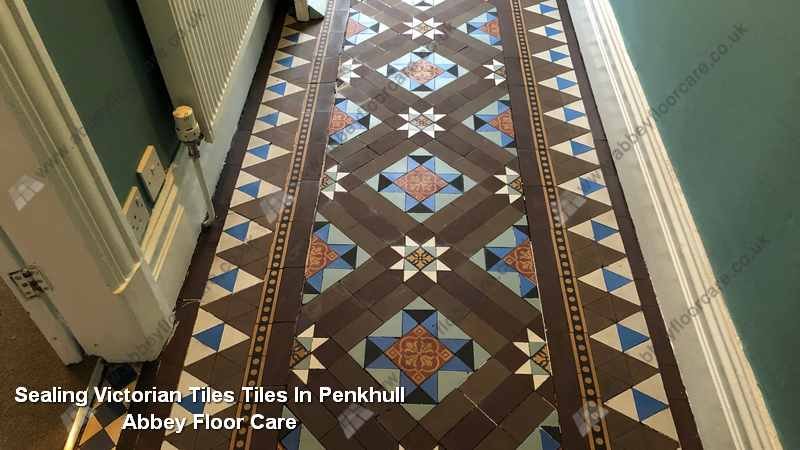

The colour enhancement was achieved through the application of a breathable impregnating sealer that penetrated the tile pores, enhancing protection, and was subsequently buffed away from the surface without leaving behind a heavy topical coating. The hallway also became easier to maintain, as dirt and residues were no longer binding so aggressively to the open contaminants resting on the surface.

Proper maintenance is crucial for extending the life of Victorian tiles, which involves removing grit before wet mopping, using pH-neutral cleaning products, and resealing at appropriate intervals. It is advisable to avoid steam cleaners, as heat and moisture can force water into grout lines, cracks, staining, and areas susceptible to efflorescence. Broader maintenance guidance is available in the Victorian and Minton tile cleaning hub, which offers extensive care advice beyond this particular Penkhull case study.

Discover Additional Victorian Tile Restoration Projects Showcasing Careful Restoration of Period Hallway Floors

Related projects in Victorian tile restoration assist homeowners in comparing similar floors without transforming this case study into broad, generic advice. The Penkhull hallway details one complete sequence of work: carpet removal, residue discovery, correction of loose tiles, repeated cleaning, drying, sealing, and final inspection.

Other completed projects also illustrate how original Minton and Victorian floors can regain clarity while still preserving their period character. The Burton on Trent Victorian clay tile restoration showcases another period floor where residue removal, moisture management, and colour recovery defined the final results. Collectively, these projects uphold the same evidence-based principle: restoration should significantly enhance the floor without erasing the history visible within the original surface.

The Penkhull project further emphasises why detailed maintenance guidance should be included within the material hub rather than becoming a separate sales pitch within the case study itself. The Victorian and Minton tile cleaning hub encompasses broader topics including residue build-up, moisture behaviour, grout lines, and safe routine care. This Penkhull hallway serves as a prime example: a hidden Staffordshire entrance floor was meticulously restored and made significantly easier to maintain.
